    80KN MIL-STD-810 Vibration Testing overview Method 514.6 IS0 17025 Accredited Lab Testing for New Energy Battery Testing

    Ask Lasest Price
    Brand Name : ASLI
    Model Number : ES-80
    Certification : CE
    Price : 40000 dollars per month
    Payment Terms : T/T
    Supply Ability : 30 Sets per Month
    Delivery Time : 40 working days
    • Product Details
    • Company Profile

    80KN MIL-STD-810 Vibration Testing overview Method 514.6 IS0 17025 Accredited Lab Testing for New Energy Battery Testing

    80KN MIL-STD-810 Vibration Testing overview Method 514.6 IS0 17025 Accredited Lab Testing for New Energy Battery Testing

    PRODUCT DESCRIPTION

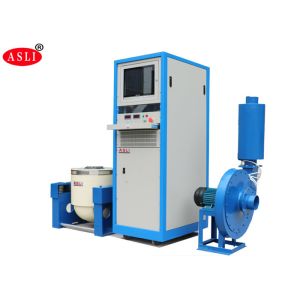

    Electro-dynamic vibration Shaker provides a testing platform for packing and transportation simulation, mechanical shock, mission profile and any other real-world condition simulation. Utilizing the most advanced controller, the closed-loop system can accurately reproduce real-world vibration conditions on products from the industries like electronic, automotive, aerospace, aviation, etc.


    TECHNICAL PARAMETERS OF VIBRATION SYSTEM


    ItemDescription

    Force

    (Maximum)

    Sine800Kg.f peak
    Random800Kg.f r.ms
    Shock1600Kg.f peak
    Frequency Range5~2000 Hz
    Max. Displacement(Peak to Peak) 100mm
    Max. Velocity2.0m/s
    Max. Acceleration100G (980 m/s2) without loading
    Vibration directionVertical and horizontal
    Armature Diameter450 mm
    Effective Armature Mass6kg
    Table screw17×M10
    Max. payload1000kg
    Magnetic Leakage<10gauss
    Axial Vibration Isolation Frequency2.5HZ
    Allowable eccentric moment>300N.m
    Dimension1200mm*790mm*840mm (Head Expander is excluded)
    Weight1600kg (Slip Table is excluded)
    Power supplyAC 3-phase 380V/50Hz,18 KVA
    Grounding resistance≤4Ω
    Air compressor0.4-0.6Mpa (provided by customer)
    Cooling methodAir cooling


    80KN MIL-STD-810 Vibration Testing overview Method 514.6 IS0 17025 Accredited Lab Testing for New Energy Battery Testing80KN MIL-STD-810 Vibration Testing overview Method 514.6 IS0 17025 Accredited Lab Testing for New Energy Battery Testing
