Large High and Low Temperature Test Chamber for Module

Ask Lasest Price
Brand Name :	ASLI
Model Number :	TH-225-E

Add to Cart

Product Details
Company Profile

Large High and Low Temperature Test Chamber for Module

More than 28 years experience • OEM accepted • Reasonable price • Fast Delivery

High Low Temperature Climatic Chambers are designed for testing performance indexes of aerospace products, ships, weapons, academic research, motorcycles, information electronics, instruments, materials, electronic engineering, electronic products, components, foodstuffs, chemicals, building materials, luggage, adhesive tape, printing, packaging materials, plastics, medical devices, and more in high-low temperature or temperature and humidity alternating environments.

High Low Temperature Test Chamber overview

High Low Temperature Test Chamber technical diagram

Technical Specifications

Model	TH-225(A~F)	TH-408(A~F)	TH-800(A~F)
Internal Dimension W×H×D (mm)	600×750×500	600×850×800	1000×1000×800
External Dimension W×H×D (mm)	1200×1900×1150	1200×1950×1350	1600×2000×1450
Temperature Range	Low Temperature (A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 150℃
Humidity Range	20%~98% R.H. (10%-98% R.H. / 5%-98% R.H. optional, requires dehumidifier)
Control Accuracy	±0.5℃; ±2.5% R.H.
Temperature Rising/Falling Velocity	Temperature rising approx. 0.1~3.0℃/min; temperature falling approx. 0.1~1.0℃/min (Falling Min. 1.5℃/min optional)
Inner and Outer Material	Interior: SUS 304# stainless steel, Exterior: stainless steel or cold-rolled steel with paint coating

Key Features

Adjustable air outlet for optimal temperature/humidity regularity; triple independent temperature security protector with redundant protection
Copper evaporator coils, fins, and connectors with heat transfer coefficient over 20, avoiding chemical coupling from stainless steel or aluminum
Advanced control system with mechanical refrigeration capable of reaching -90ºC
Modern "L" solid design with customizable colors and appearance effects representing LIK culture
Large temperature range: -40ºC to 200ºC with 2.0mm thickness sheet metal
Unique temperature and humidity controlled range capabilities
Automatic watering system with drawer-type hidden water tank and water recovery system with level sensor
Competitive pricing with high quality and comprehensive after-sales service

Product Images

Internal chamber view showing stainless steel construction

Related Products

Thermal Shock Test Chamber

Temperature Humidity Vibration Test

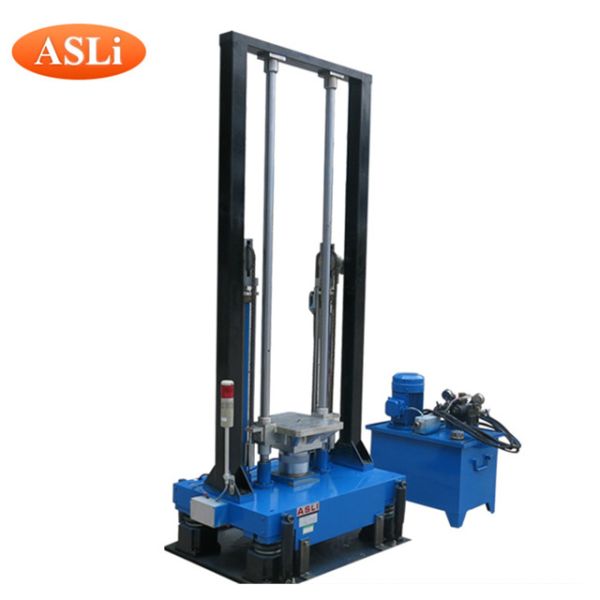

Acceleration Mechanical Shock Tester

Company Profile

We are an established testing equipment manufacturer with 28 years of experience, specializing in simulation environmental testing equipment and mechanical vibration and shock testing machines. Our High Low Temperature Climatic Chamber is a star product that has obtained CE certification.

Packing & Delivery

Our Service Commitment

High quality guarantee
Shipment with professional documentation
Custom packaging with photos provided before shipment
Response within 48 hours with solutions within 3 working days
Professional after-service from our engineers
12-month warranty period

Frequently Asked Questions

What is your terms of packing?

PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

What is your terms of payment?

T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

What is your terms of delivery?

EXW, FOB, CIF, DDU, DDP

How about your delivery time?

Generally, it will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

For any questions or requirements about our High Low Temperature Climatic Chamber, please feel free to send your inquiry.
