Environmental Temperature Laboratory Aging Test Chamber Room

Ask Lasest Price
Brand Name :	ASLI
Model Number :	THR-8000-F
Price :	$26,542

Add to Cart

Product Details
Company Profile

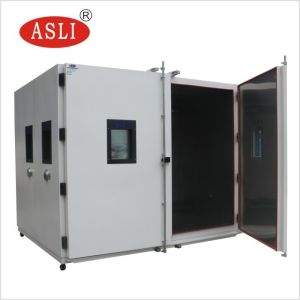

Environmental Temperature Laboratory Aging Test Chamber Room

Product Description

Economical to meet the needs of your budget
Easy move-in and assembly
Accept OEM/ODM
Choice of interior and exterior finishes to meet your laboratory requirements
Configurable to any size to fit your needs
Provide on-site service & installation & commissioning& training

Laboratory Environmental Temperature Laboratory Aging Test Chamber Room is consist of Control Panel, electrical panels, moisturizing plate blower, heater, humidifier, freezer. It provides a large spare to test the temperature and humidity for large-scale parts, semi-finished products, it applied to test products that large-scale or the quantity more, such as: computer terminals, vehicle parts.

Corresponding Standard:
1. GB11158 Technical conditions for high-temperature testing room
2. GB10589-89 Technical conditions for low-temperature testing room
3. GB/T10586-89 technical conditions for humidity testing room
4. GB/T2423.1-2001 testing methods for low-temperature
5. GB/T2423.2-2001 testing methods for high-temperature
6. GB/T2423.3-93 technical conditions for humidity testing room
7. GB/T2423.4-93 testing method for alternating hot and humid
8. IEC60068-2-1.1990 testing methods for low-temperature
9. IEC60068-2-2.1974 testing methods for high-temperature
10. GJB150.3 High-temperature test
11. GJB150.4 Low-temperature test
12. GJB150.9 muggy test
13. GB/T2423.22 temperature test

Specification

Model	THR-volume (low-temperature options : A ~ F)
Inner Dimensions(cm)	Customers designated space size and design
Temperature Range	Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 80°C (80°C ~200°C is optional)
Humidity Range	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)
Indication Resolution/ Distribution Uniformity of Temperature & Humidity	0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H.
Control Accuracy of Temperature and Humidity	±0.5°C; ±2.5% R.H.
Temperature Rising/ Falling Velocity	Temperature rising approx. 0.1~3.0°C/min temperature falling approx. 0.1~1.0°C/min; ( The Falling Velocity Min.1.0°C /min is a optional)
Cooling System	Water cooled
Protection Devices	Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories	Slope for cart , Recorder, Water Purifier, Dehumidifier
Compressor	French Tecumseh Brand, Germany Bizer Brand
Power	AC 380 V(±10%),50/60HZ ,3 ph 5 Lines

Thermal Cycling Tester Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips. Easy to operate, safe and Reliable.
2. Rectangular double-paned viewing window for viewing sample under test, with interior light
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot And automatically recyclable.
5. French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, with quick or ramp rates Control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and mechanical vibration and shock testing machine. Walk in Temperature and Humidity Control Chamber for Environmental Testing is our star products , and we had obtained the CE certification for this machine .
